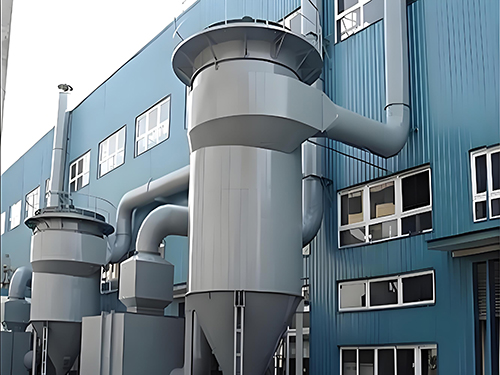

The CLT/A type cyclone dust collector is mainly composed of three parts:a cyclone cylinder,an ash collecting hopper and a volute(or wind collecting cap).According to the number of cylinders,it can be divided into five combinations:single cylinder,double cylinder,three cylinder,four cylinder and six cylinder.Each combination has two air outlet modes:X type(horizontal air outlet)and Y type(upper air outlet).Its working principle is that dust-containing gas enters at a high flow rate along the spiral tangent top cover with a 15-degree inclination,and rotates to generate centrifugal force.The dust is separated to the wall and then falls into the ash hopper,and the purified gas is discharged.This equipment has the characteristics of small resistance,good dust removal efficiency,large air volume,simple and practical structure,etc.It is suitable for coarse and intermediate dust purification in metallurgy,building materials,mining and other industries.
CLT/A type cyclone dust collector,also known as spiral cyclone dust collector or basic cyclone dust collector,is a dry dust removal equipment that uses centrifugal force to separate dust in gas.CLT/A type cyclone dust collector is composed of three parts:cyclone cylinder,ash collecting hopper and volute(or wind collecting cap).According to the number of cylinders,the CLT/A type cyclone dust collector has five combinations of single cylinder,double cylinder,three cylinder,four cylinder and six cylinder.Each combination has two air outlet forms:X type(horizontal air outlet,generally used for negative pressure operation)and Y type(upper air outlet,generally used for positive pressure or negative pressure operation).For the X-type double-tube combination,there are two combinations of central air inlet and outlet and side air inlet and outlet.The key to its working principle is that the top cover is designed as a spiral tangent with a downward slope of 15°,so that the dust-containing gas will swirl down in this direction after entering,avoiding the formation of an"upper dust ring",reducing eddy currents and kinetic energy consumption,thereby improving the separation efficiency.The CLT/A type cyclone dust collector has the characteristics of small resistance,good dust removal efficiency,large air volume,stable performance,small footprint,simple structure,practicality and low price.In addition,the equipment has a simple structure,no moving parts,easy operation and maintenance,low cost and long service life.Because of its good purification efficiency for coarse-grained dust,it is often used as the front-stage pretreatment equipment of multi-stage dust removal systems.It is suitable for coarse and medium-level purification of dust in various mechanical processing,metallurgical building materials,and mining.It is mainly suitable for collecting dry,non-fibrous,high-density granular dust.It is mostly used in metallurgy,casting,sandblasting,building materials,mining,electric power,chemical industry,food processing and other industries.
How it works:
The CLT/A type cyclone dust collector is a dry gas-solid separation device.Its basic principle is to use the centrifugal force generated by rotating dust-laden gas to separate dust from the air flow.
The dust-containing gas enters the dust collector along the 15°downward-inclined spiral tangent top cover at a flow rate of 12~20m/s,and swirls downward along the direction of the inclined top cover to avoid the formation of an upper dust ring and small vortex airflow,thereby reducing kinetic energy consumption.During the rotation process,the dust particles are thrown toward the wall by centrifugal force and separated from the gas,and then fall into the ash collecting hopper.The purified gas is discharged through the volute or the air collecting cap.Its structural features are a slender cylinder,a long cone and a small cone angle,which helps to improve dust removal efficiency,but also increases resistance.
This dust collector has a high dust removal efficiency of more than 80%for particles above 5 microns,but has a low dust removal efficiency for fine particles below 5 microns.
CLT/A type cyclone dust collector can be divided into various combinations according to the number of cylinders,such as single cylinder,double cylinder,three cylinder,four cylinder and six cylinder.Each combination usually has two air outlet modes:X type(horizontal air outlet)and Y type(upper air outlet).
Components:
This type of dust collector is composed of three parts:a cyclone cylinder,an ash collecting hopper,and a volute(or wind collecting cap).According to the number of cylinders,there are five combinations:single cylinder,double cylinder,three cylinder,four cylinder,and six cylinder.Each combination has two air outlet forms:Type I(horizontal air outlet)and Type II(upper air outlet).For type I double-tube combinations,there are two combinations:center air inlet and side air inlet.Type I single tube and three tubes only have side air inlet and outlet.Four-tube and six-tube combinations only have center air inlet and outlet.For various combinations of type II,any air inlet position in type I above can be used.This type of dust removal equipment has the characteristics of small resistance,good dust removal efficiency,large air volume,stable performance,small footprint,simple mechanism,practicality and low price.
The combined air inlet methods include side air inlet and central air inlet.The air inlet in the clockwise direction is right-rotating,also known as S-type.The air inlet in the counter-clockwise direction is left-rotating,also known as N-type.
